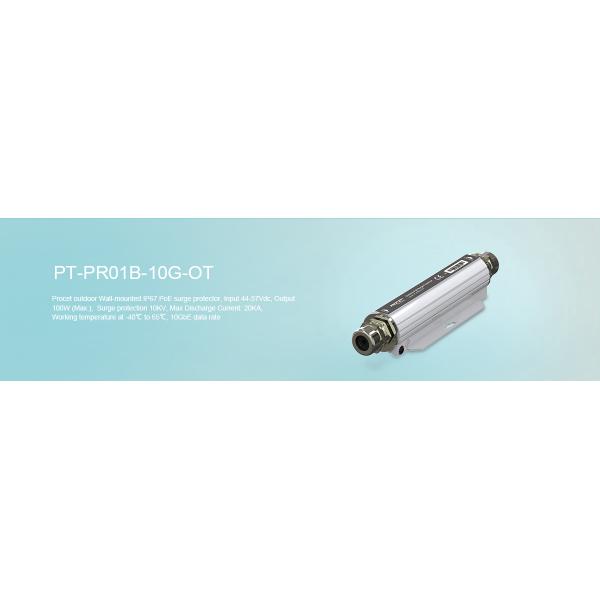

PROCET PoE Ethernet Surge Protector, 10GbE Data Rates PoE Surge Protector, Cat5 Surge Protector
Key Features
10GbE data rates
Provide 10KV surge protection and 4 Level protection for 4 PoE wires simultaneously
Peak Surge Current up to 20KA per PoE wire
Wide temperature at -40℃ to 65℃ even up to 85℃ can be outdoor use by covered with a waterproof case
No local power is needed.
| Parameter | Description |
| Pass-Through Data Rates | 10/100/1000 Mbps & 2.5/5/10GbE |
| PoE Surge Protection | Max Discharge Current: 20KA(8/20us,2.5KA per line) |
| Protected Line: 1,2,3,4,5,6,7,8 |
| Common Mode Protection Level(10/700us): 10KV |
| Differential Mode Protection Level(10/700us): 6KV |
| Clamping Voltage(Line to GND): 300V |
| Clamping Voltage(Line to Line): 10V |
| Insertion Loss @10MHz/100MHz -1db |
| Return Loss @10MHz/100MHz: -20db |
| Response Time 5ns |
| Mechanical Characteristics | Case: Aluminium alloy |
| Color: White |
| Mounting: Wall-mounted |
| IP Rated: IP67 |
| Connectors: Shielded RJ-45 |
| Size: 209mm X 53mm X 37.5mm |
| Weight: 380g(0.84lb) |
| Warranty | 2 year |
Standards
- IEEE802.3 10Base-T Ethernet
- IEEE802.3u 100Base-Tx Fast Ethernet
- IEEE802.3ab 1000Base-T Gigabit Ethernet
- IEEE802.3bz 2.5GbE/5GbE/10GbE NBASE-T
- Support PoE wire with IEEE802.3af/at standards
- Support 100W PoE++ standards
- RoHS Compliance
- WEEE Compliance
Input & Output
- Operating Voltage :44-57Vdc, (Max 60Vdc)
- Maximum Operating DC Current:1A for 2 pairs, 2A for 4 pairs, maximum 100W
- Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-)
- Data Speed: 10/100/1000Mbps & 2.5/5/10GbE
Mechanical Characteristics
- Case: Aluminium alloy
- Color: White
- Mounting: Wall-mounted
- IP Rated: IP67
- Size: 209mm X 53mm X 37.5mm
- Weight: 380g
